V3RS10M/N3M0D0X2

surface-mounted luminaire • linear
lacquered aluminium
low power LED • 4000 K
Shielded lens • white polycarbonate (PC) • medium wide-angle
<= 19
2850 lm
137 lm/W
96% @ 50khrs (Tq=25°C)
EN 62471: RISK GROUP 1 UNLIMITED

Quick downloads

x

Product description

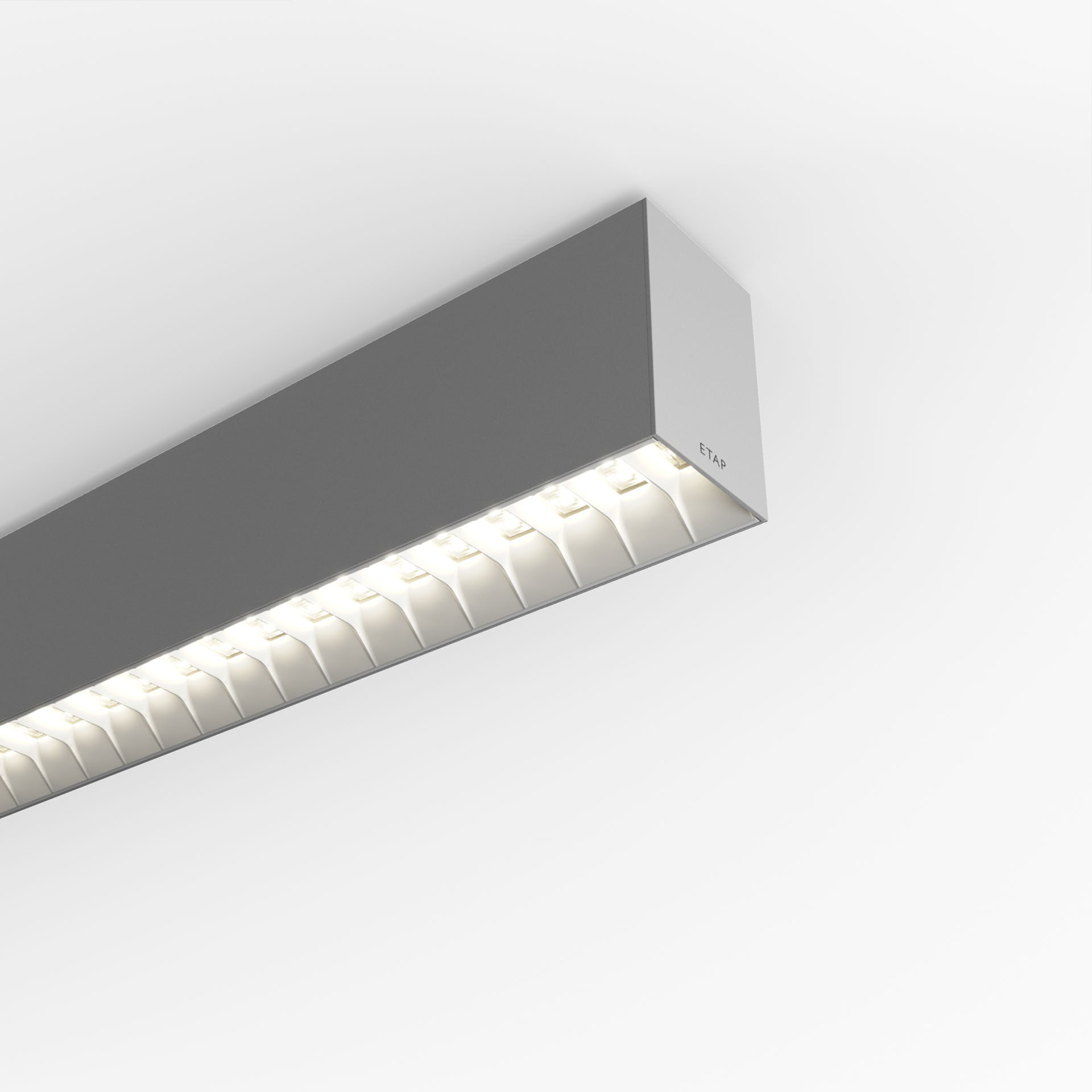

V3RS10M/N3M0D0X2 Linear surface-mounted luminaire, Shielded lens optics, white polycarbonate (PC), medium wide-angle light distribution. Dimensions: 1371 mm x 60 mm x 90 mm. Architectural luminaire. Shielded lens: the light source is hidden from view by shielding units, the light distribution is made with a lens. Two lenses per shield cavity. Luminous flux: 2850 lm, Luminous efficacy: 137 lm/W. Power: 20.7 W, DALI dimmable. Frequency: 50-60Hz AC. Voltage: 220-240V. Electrical isolation class: class I. LED with very good light maintenance; at 50000 hrs the luminaire retains 96% of its initial flux (Tq=25°C). Correlated colour temperature: 4000 K, Colour rendering ra: 80. Standard deviation colour matching satisfy 3 SDCM. Shielded lens for glare-free light distribution with UGR <= 19 and luminances @ 65° 3000 Cd/m² conform norm EN 12464-1 for high visual demands, e.g. display screen equipment. Photobiological safety EN 62471: RISK GROUP 1 UNLIMITED. Lacquered aluminium housing, RAL9006 - white aluminium (textured). IP protection level: IP20. IK protection level: IK07. Glowwire: 850°C. 5 years warranty on luminaire and driver. Certifications: CE, ENEC. Luminaire with halogen free leads. The luminaire has been developed and produced according to standard EN60598-1 in a company that is ISO9001 and ISO14001 certified. Mandatory accessoires for mounting the luminaire: V3H2500, V3H9900, V3H9960.
