The ETAP Safety Manager (ESM) is a central control and management system for your emergency lighting.

ETAP Safety Manager

Your emergency lighting under control: everywhere, anytime

The ETAP Safety Manager (ESM) is a central control and management system for your emergency lighting.

How does ESM work?

With ESM you can monitor and manage emergency lighting in multiple buildings, from any location:

  • Online via the ETAP ESM portal;
  • Via the local network / building management system.
ESM wireless
Each luminaire has a unique code for individual recognition and follow-up. If a luminaire is defective, you will receive a message.

How does ESM work?

Would you like to know more? Our experts will assist you

Would you like to know more? Our experts will assist you

Contact

How does ESM work?

ESM emergency lighting luminaires

ESM

Self-contained luminaires

EBS Superior

EBS Superior and Superior Compact (battery systems for centrally supplied emergency lighting)

ledmodule

Lighting luminaires with LED module for emergency lighting

Verlichtingsarmaturen met noodunit

Lighting luminaires with emergency unit

How does ESM work?

Wired versus wireless ESM network

Wired

Wired

Web controller and luminaires communicate through a BUS.

Wireless

Wireless

Wireless communication with luminaires.

Wired and wireless

Combination of wired and wireless

Combined wireless and wired networks are possible.

Wireless ESM advantages

  • No additional communication cabling required, you avoid disruptive surface-mounted cabling.
  • Equally reliable and with a similar investment cost compared to wired.
  • Unlike other wireless control systems, the other luminaires are not affected (star network) in case of a defective or relocated luminaire.

waarom draadloos

ESM advantages

Opt for extra security

ESM closely follows the status of your emergency lighting. You can see at a glance whether all luminaires are working correctly. The installation is monitored and actively managed:

  • You know at any time when maintenance is required.
  • You can schedule the test moments yourself.
  • You will be notified in the event of malfunctions.

veiligheid

ESM advantages

Save time and money

Automatisch logboek

An automatic log book of all checks and maintenances (in accordance with EN 50172).

detailinfo

Detailed info: description of the defect, type of luminaire, location on floor plan or photo, required parts.

inplannen

Efficiently scheduled maintenance based on information about lamp burning hours and battery duration.

centraal beheer

Central management from one point, by one person.

ESM advantages

User friendly

  • Easy commissioning.
  • Luminaires are classified according to a logical structure, e.g. of the building.
  • ESM software automatically recognizes all luminaires.
  • You can focus on relevant information and actions.

gebruiksvriendelijk

ESM advantages

ESM grows along with your needs

If the structure of your building changes, you can easily adjust this in ESM:

  • in a wired network you can connect the luminaires randomly.
  • If you want to expand with wireless luminaires, you can connect the wireless
    communication interface anywhere on the wired network.

ESM groeit met je mee

ESM network and codes




ESMweb CONTROLLER

ESm webcontroller new


KH16-200

KH16-500

KH16-8000

Amount of luminaires
up to 200
up to 500
up to 8000
Material
aluminium painted black
Dimensions W x D x H
198 x 145 x 42 mm
Assembled connected dimensions W x D x H
198 x 340 x 42 mm
Mounting
Detached or DIN rail

ESM NETWORK

(maximum 16 BUSES per COM port)

Wired ESM network with emergency lighting luminaires

(maximum 500 luminaires per BUS)

BUS-power supply
dimensions (w x h x d in mm): 90 x 60 x 75 / DIN-rail mounting reach: maximum distance between furthest points: 0.66 km with 0.5 mm2 wire; 1.8 km with 1.5 mm2 wire; 2.7 km with 2.5 mm2 wire / resistance BUS power supply to utmost terminals: ≤ 50 Ohm / power: 3 W
K4H12
BUS-adapter
dimensions (w x h x d in mm): 90 x 60 x 75 / DIN-rail mounting / reach: in accordance with RS232 specifications / PC connection: RS232 COM port / power: 1 W
K4H16
BUS-network
type: 2-core twisted pair (0.5 – 2.5 mm2) / total length: maximum 6 km (maximum capacity: 1 μF) / topology: free
eg. LiYY
not included

Wired ESM network for lighting luminaires with emergency units

(maximum 64 luminaires per segment)

EUG-power supply
dimensions (w x h x d in mm): 90 x 60 x 75 / DIN-rail mounting / maximum reach: 200 m / power: 6 W
KH7
Emergency Unit Gateway (EUG)
dimensions (w x h x d in mm): 90 x 60 x 75 / DIN-rail mounting / power: 3 W
KH6
Wiring
type: 2-core (0.5 -1.5 mm2) / total length: maximum 300 m with 1.5 mm2; maximum resistance 8 Ohm / Insulation voltage 500V
not included
Emergency unit
luminaires with emergency unit
consult ETAP

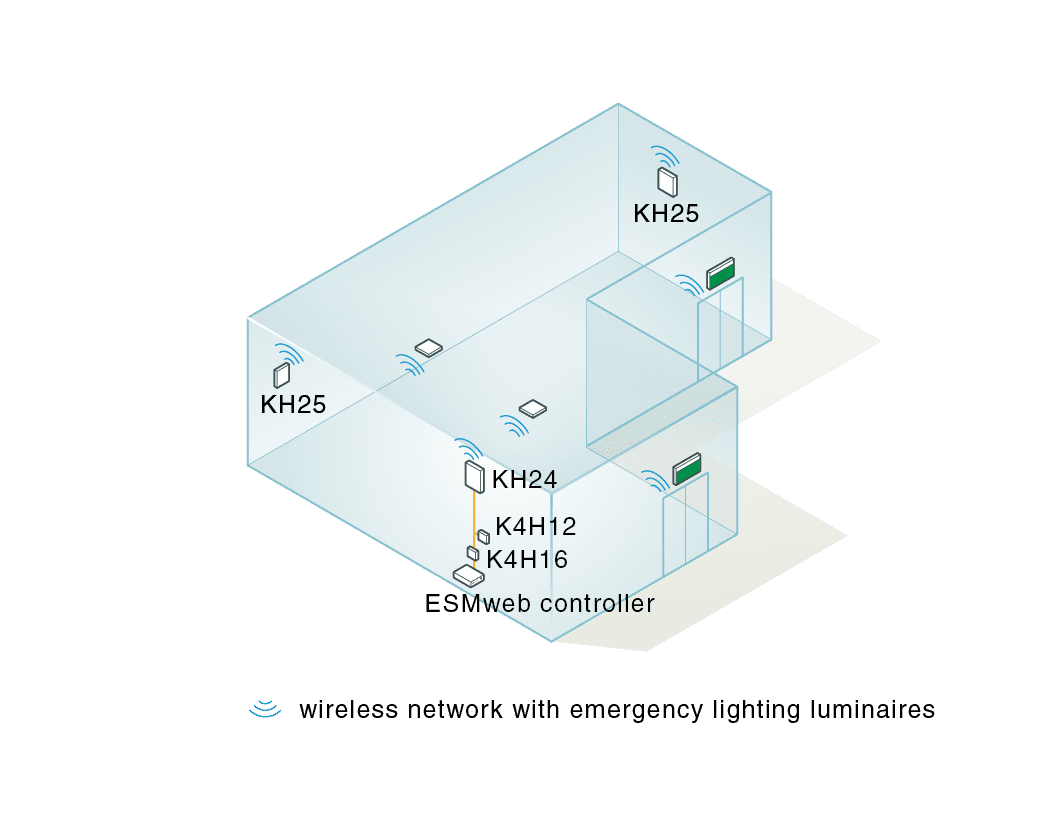

Wireless ESM network with emergency lighting luminaires

Master
dimensions (w x h x d in mm): 140 x 140 x 48 / 868 MHz / 254 channels / transmission power: 25 mW /to connect to the ESM-BUS
KH24
Repeater
dimensions (w x h x d in mm): 140 x 140 x 48 / 868 MHz / 254 channels / transmission power: 25 mW
KH25

Central battery system (EBS)

ESM - EBS Superior Gateway
KH27

Connection to ESM network in other buildings through a local network (LAN)

(maximum 24 COM servers / web controller)

Extra components per annex building

(maximum 10 BUSES per COM-server)

COM-server
ESMweb controller and COM server driver to be configured by the local network (LAN) administrator / dimensions (w x h x d in mm): 75 x 80 x 25 / DIN-rail mounting / ethernet connection: RJ45; 10/100 Mbps / serial connection: RS-232 / male DB9 / power: 2 W
KH22
Local Area Network (LAN)
Local computer network, ethernet
Not included

Connection with ESMweb controller

Pc
With network connection and web browser
Not included
Local network
Ethernet switch 8 ports
C4C04-08
LAN network
Ethernet switch 24 ports
C4C04-24

Via internet

World Wide Web
Connection to ESMweb controller via network cable
Not included

Directly on the pc

Network cable
Crossed network cable
Not included

Via corporate network

Corporate Network
Connection to ESMweb controller via network cable and router with firewall
Not included

Networks for building management

Also ETAP Emergency Lighting can, in addition to other applications, be connected to such networks. Experience has taught us that this invariably involves customised solutions. For these projects we will be happy to work out the best possible solution. Consult your ETAP adviser.

CONNECTION TO ESMweb CONTROLLER

1) VOLT-FREE CONTACT FOR ESM
This solution allows the status of the ESM installation to be displayed using 4 open/closed contacts
The following error situations are displayed:

  • 1 or more luminaires have an error message;
  • the communication between ESM and 1 or more luminaires has been broken;
  • 1 or more luminaires are in emergency mode;
  • the communication with ESM is broken.
PVC power supply
dimensions (w x h x d in mm): 27 x 75 x 100 / DIN-rail mounting / power: < 5W

PVC output module
dimensions (w x h x d in mm): 72 x 122 x 42 / DIN-rail mounting
KH20
ESM PVC module
dimensions (w x h x d in mm): 72 x 122 x 42 / DIN-rail mounting / connection with web controller: USB


2) ASCII EXPORT FILE
Every day, the ESMweb controller writes a detailed file that serves as input for processing in the building management system.
